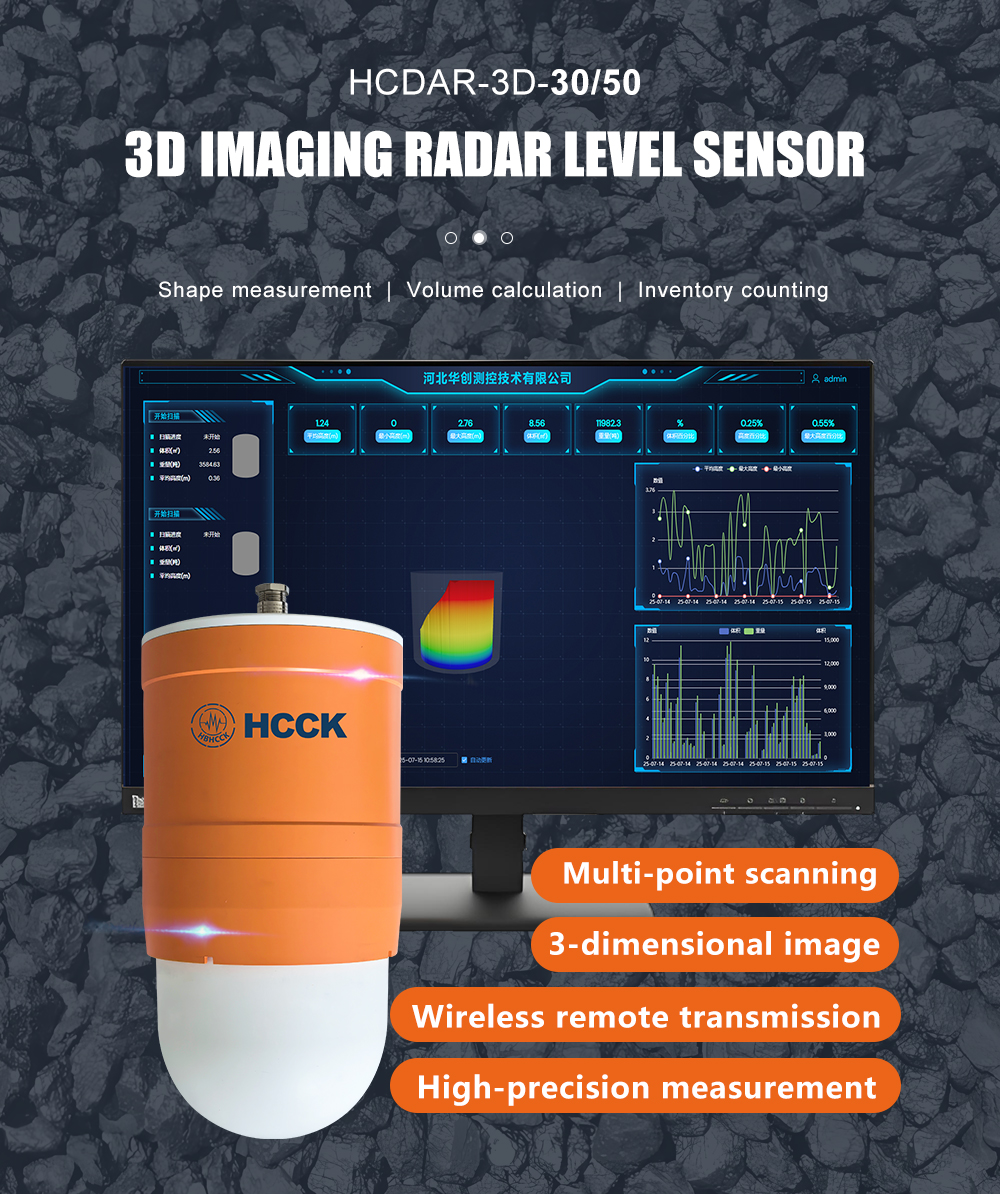

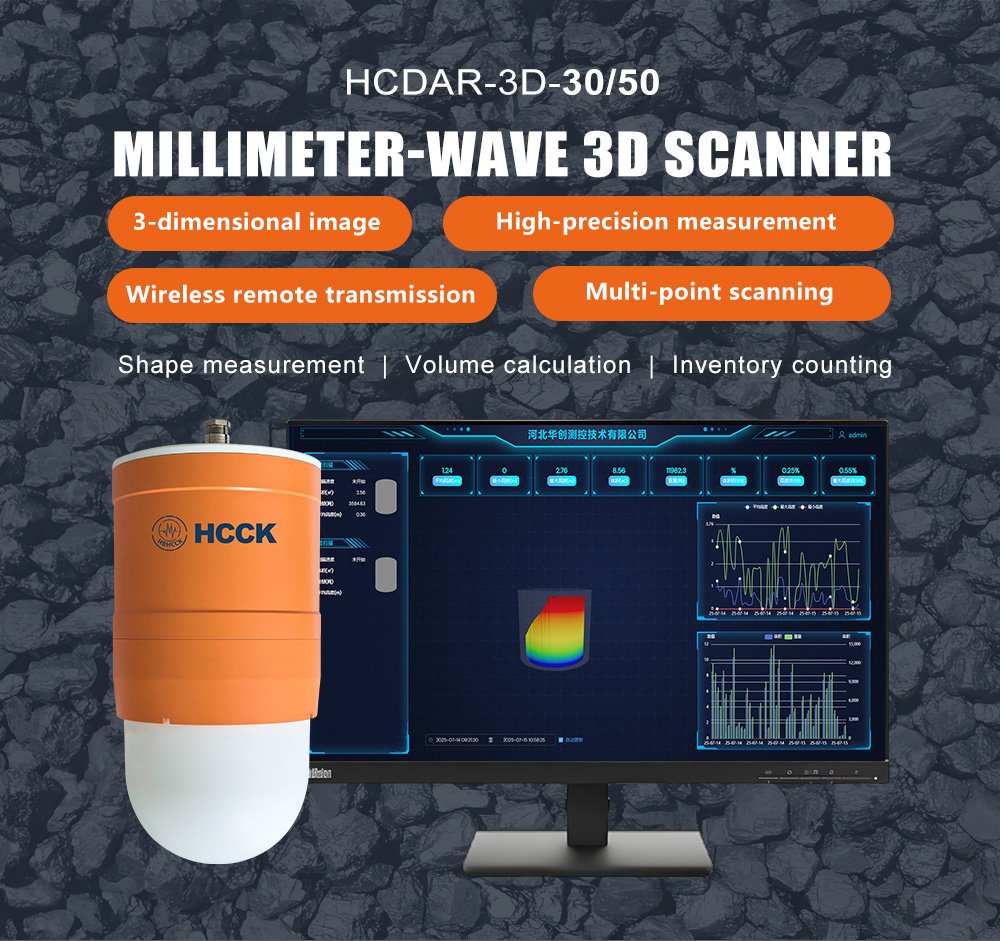

3D Radar Scanning Robot HCDAR-3D-30

Frequency: 80GHz
Maximum distance: 30m
Accuracy: Ranging accuracy ±5mm; Modeling accuracy ±0.5%FS
Power supply: 12-28V DC/220V AC
Horizontal scanning angle: 360°
Pitch scanning angle: -90°-90°
2D rotation speed: 50ms/circle; 3D rotation speed: 30s/circle
Point cloud quantity: 4000 points/s
Body diameter: <190mm (compatible with DN200 flange)
Protection class: IP67
Ambient temperature: -40℃~85℃
Application scenarios: Normal temperature silos
stacking sheds

PRODUCT DETAILS

Product overview

The HCDAR-3D-30 scanning imaging radar is specially designed for enclosed warehouse environments such as silos. It can perform real-time material scanning in normal-temperature silos, tanks, and other storage bins, realizing functions such as static target detection within the spatial range, point cloud data output, spatial scanning imaging, and volume and weight calculation output. It is not affected by harsh environments such as rain, dust, and light.

Product principle

The HCDAR-3D-30 scanning imaging radar uses millimeter-wave signals to conduct all-round, high-precision, non-contact measurement of materials, acquire high-density point cloud data, and automatically calculate information such as height, volume, and mass.

Product details

Parameters	HCDAR-3D-30
Frequency	80GHz
Maximum distance	30m
Accuracy	Ranging accuracy ±5mm Modeling accuracy ±0.5%FS
Power supply	12-28V DC/220VAC
Horizontal scanning angle	360°
Pitch scanning angle	-90°~90°
2D rotation speed	50ms per revolution
3D rotation speed	30 seconds per revolution
Number of point clouds	4000 points per second

Body diameter	≤190mm (Adapting to DN200 flange)
Protection class	IP67
Ambient temperature	-40℃~85℃
Overall weight	5kg
External interface	Etherne
Application scenario	Normal temperature silos, storage she
