HCDB-50 Display Hydrostatic Level Transmitter

  • Application:Liquid

  • Measuring Range:0-350m

  • Process Connection:Thread

  • Flange

  • Medium Temperature:-20~80℃

  • Accuracy:0.1%FS 0.2%FS 0.5%FS

  • Housing Protection Grade:IP66

  • Power Supply:24VDC

  • Signal Output:4-20mATwo-Wire/RS485Modbus



0-350m 4-20mA 24VDC Display submersible hydrostatic level transmitter

The input level gauge is based on the principle that the measured hydrostatic pressure is proportional to the height of the liquid. The pressure sensor is used to convert the pressure signal into an electrical signal, which is converted into a standard current signal or digital signal after temperature compensation and linear calibration.

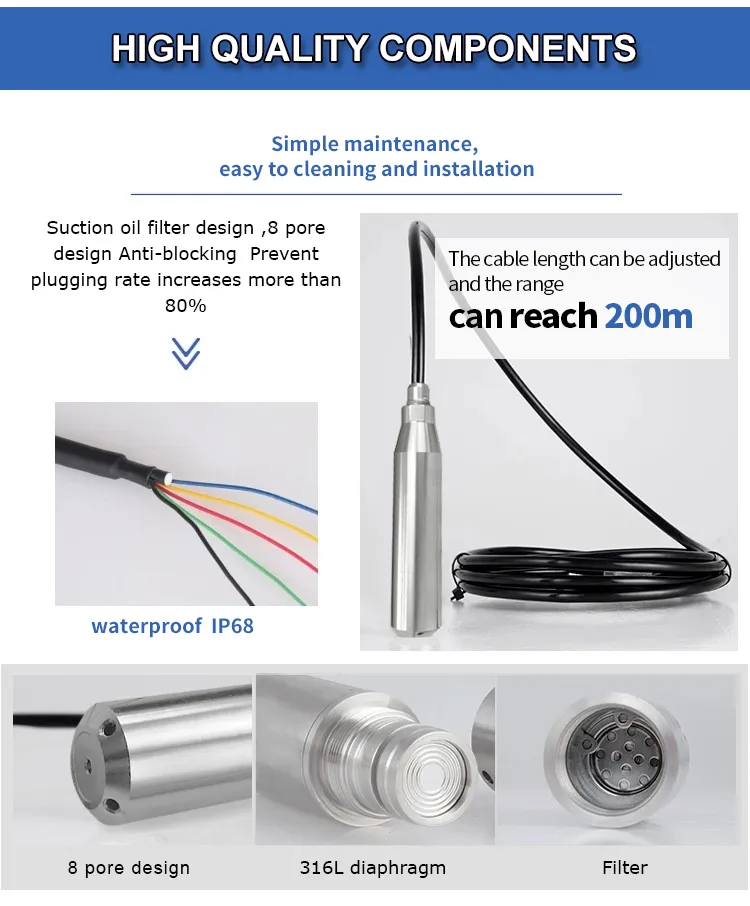

High quality cable with air duct; can be displayed on site; two sensors are available for multiple applications. The imported silicon piezoresistive sensor has high precision and good stability; the ceramic sensor has large hole design, anti-blocking and anti-corrosion; it is directly put into the liquid to be tested, and the installation is simple;

Input-type liquid level meter is suitable for urban water supply and sewage treatment, water conservancy and hydropower monitoring and control, marine and marine systems, chemical, medical equipment, industrial on-site liquid level measurement and control, water supply and drainage, environmental protection systems and various industries. Static pressure level measurement of a variety of media.



1.use high quality cable with air duct;  can choose field display.

2.two kinds of sensors are optional, various application conditions, ceramic sensorwith big hole design, anti-blocking, anti-corrosion.

3.use imported silicon piezoresistive sensor with high accuracy and good stability.

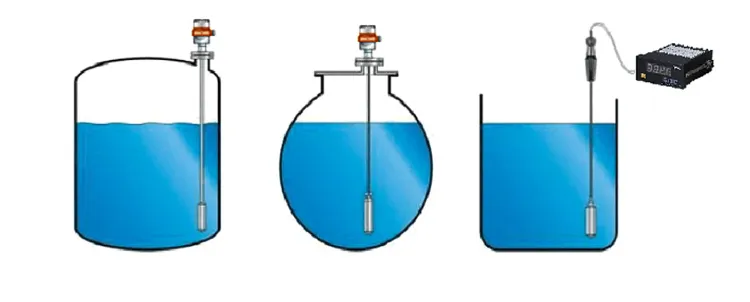

4.directly put into the measured liquid, simple installation.



HCDB-50 type liquid level sensor, cable type, can choose common sensor or large hole anti-blocking design sensor, with die-cast aluminum shell, optional field display. Maximum measurement is 350m (beyond this range can be customized). Output signal (4-20) mA or RS485 Modbus standard protocol.
