-20～85℃ 0-350m Submersible Hydrostatic Liquid Transmitter Stainless Steel 304 24VDC Hydrostatic water level Transmitter

The input level gauge is based on the principle that the measured hydrostatic pressure is proportional to the height of the liquid. The pressure sensor is used to convert the pressure signal into an electrical signal, which is converted into a standard current signal or digital signal after temperature compensation and linear calibration.

High quality cable with air duct; can be displayed on site; two sensors are available for multiple applications. The imported silicon piezoresistive sensor has high precision and good stability; the ceramic sensor has large hole design, anti-blocking and anti-corrosion; it is directly put into the liquid to be tested, and the installation is simple;

Input-type liquid level meter is suitable for urban water supply and sewage treatment, water conservancy and hydropower monitoring and control, marine and marine systems, chemical, medical equipment, industrial on-site liquid level measurement and control, water supply and drainage, environmental protection systems and various industries. Static pressure level measurement of a variety of media.

0-350m 4-20mA 24VDC Display submersible hydrostatic level transmitter

The input level gauge is based on the principle that the measured hydrostatic pressure is proportional to the height of the liquid. The pressure sensor is used to convert the pressure signal into an electrical signal, which is converted into a standard current signal or digital signal after temperature compensation and linear calibration.

High quality cable with air duct; can be displayed on site; two sensors are available for multiple applications. The imported silicon piezoresistive sensor has high precision and good stability; the ceramic sensor has large hole design, anti-blocking and anti-corrosion; it is directly put into the liquid to be tested, and the installation is simple;

Input-type liquid level meter is suitable for urban water supply and sewage treatment, water conservancy and hydropower monitoring and control, marine and marine systems, chemical, medical equipment, industrial on-site liquid level measurement and control, water supply and drainage, environmental protection systems and various industries. Static pressure level measurement of a variety of media.

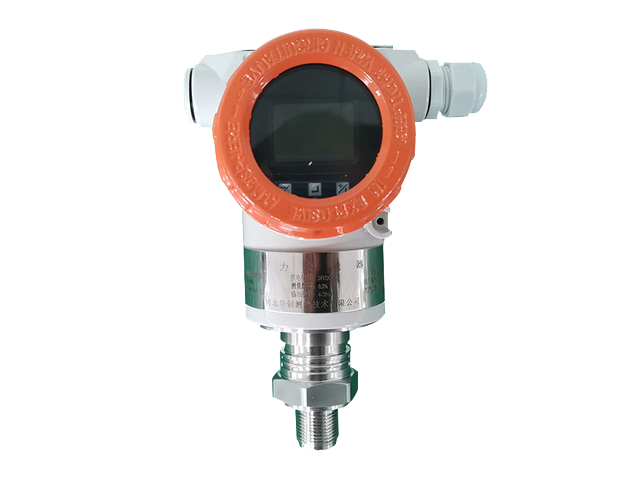

lcd screen display simple type Pressure transmitter 0.25%  40~105 degree centigrade pressure transmitter

Pressure transmitter adopts the imported silicon piezoresistive sensor as the pressure measuring element, which is divided into simple type, sanitary type and industrial type.

The simple type pressure transmitter has Hirschman joint type and integrated cable type, both use single chip scheme. This chip is the special signal conditioning chip of pressure transmitter with high integration, high precision and good stability. 1 wire digital communication calibration , no potentiometer.

The sanitary type pressure transmitter planar diaphragm design solves the problem of common pressure transmitters which is unable to clean the dirt and impurities on pressure leading holes. It adopts the advanced temperature compensation and nonlinear correction technologies, so it is particularly suitable for the applications of food and pharmaceutical industries where request high level sanitary conditions.

The industrial pressure transmitter adopts high performance 24-bit AD converter, with backlight LCD , HART or RS485 communication as optional, and three buttons on keyboard to fulfill the adjustment easily.

LCD 4-20ma output 0.1%，0.2%  accuracy water oil differential pressure transmitter sensor

HDCP series Intelligent Differential Pressure Transmitter is a high performance pressure transmitter with the world-leading technology, developed with international advanced monocrystal silicon pressure sensor and patented packaging process. It adopts the patented double overload protection diaphragm design and internal circuit surge protection design, which could measure the gauge pressure, absolute pressure, flow rate, liquid level and density accurately. Designed by high level of integration and modularized circuit technology, achieves the functions of remote transmission, local zero, full range adjustment.

So it could be used in the process control fields of petroleum, chemical, metallurgy, electric power, food, papermaking, medicine, machinery manufacturing, scientific experiment and aviation military industries.

0-60MPa 0.25%，0.5% Accuracy industrial type Pressure transmitter 0-10VDC Pressure sensor

Pressure transmitter adopts the imported silicon piezoresistive sensor as the pressure measuring element, which is divided into simple type, sanitary type and industrial type.     The simple type pressure transmitter has Hirschman joint type and integrated cable type, both use single chip scheme. This chip is the special signal conditioning chip of pressure transmitter with high integration, high precision and good stability. 1 wire digital communication calibration , no potentiometer. The sanitary type pressure transmitter planar diaphragm design solves the problem of common pressure transmitters which is unable to clean the dirt and impurities on pressure leading holes. It adopts the advanced temperature compensation and nonlinear correction technologies, so it is particularly suitable for the applications of food and pharmaceutical industries where request high level sanitary conditions. The industrial pressure transmitter adopts high performance 24-bit AD converter, with backlight LCD , HART or RS485 communication as optional,  and three buttons on keyboard to fulfill the adjustment easily.

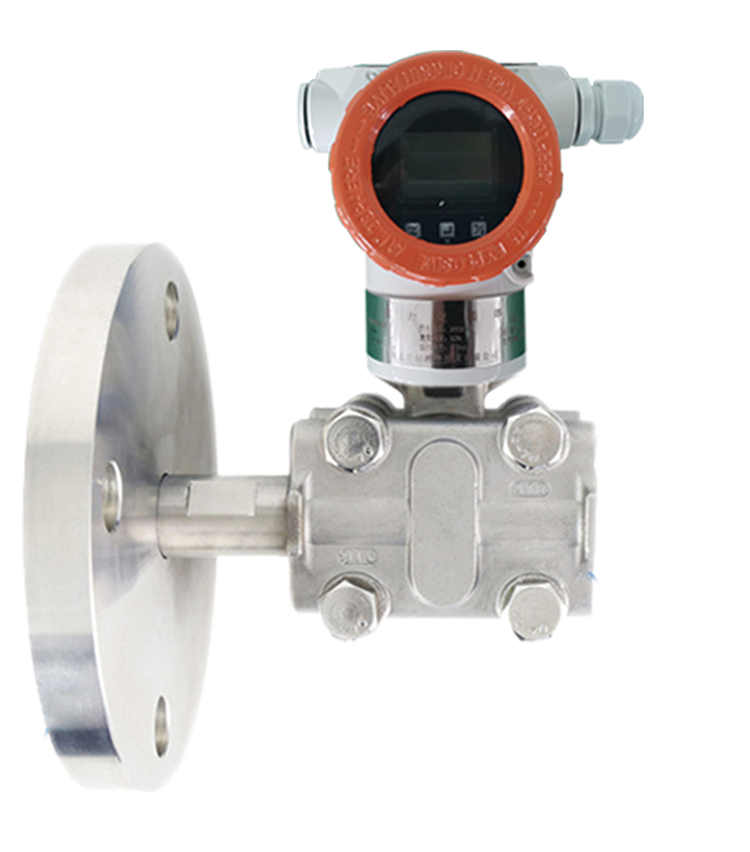

• Two-Wire System (4-20) mA/HART Protocol 0.1%，0.2% Single flange differential pressure transmitter

HDCP series Intelligent Differential Pressure Transmitter is a high performance pressure transmitter with the world-leading technology, developed with international advanced monocrystal silicon pressure sensor and patented packaging process. It adopts the patented double overload protection diaphragm design and internal circuit surge protection design, which could measure the gauge pressure, absolute pressure, flow rate, liquid level and density accurately. Designed by high level of integration and modularized circuit technology, achieves the functions of remote transmission, local zero, full range adjustment.

So it could be used in the process control fields of petroleum, chemical, metallurgy, electric power, food, papermaking, medicine, machinery manufacturing, scientific experiment and aviation military industries.
