Product introduction

 IP67 angle 6° 80G FMCW radar level sensor -40～85 ℃ 0～30m Water level masurement

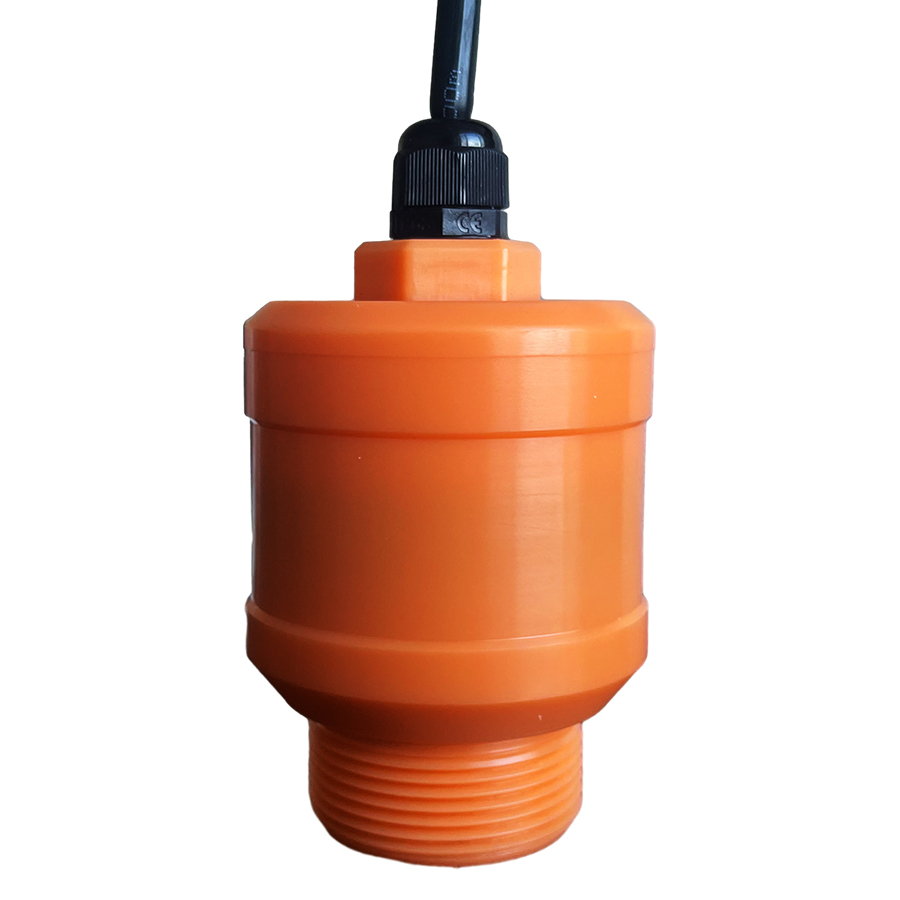

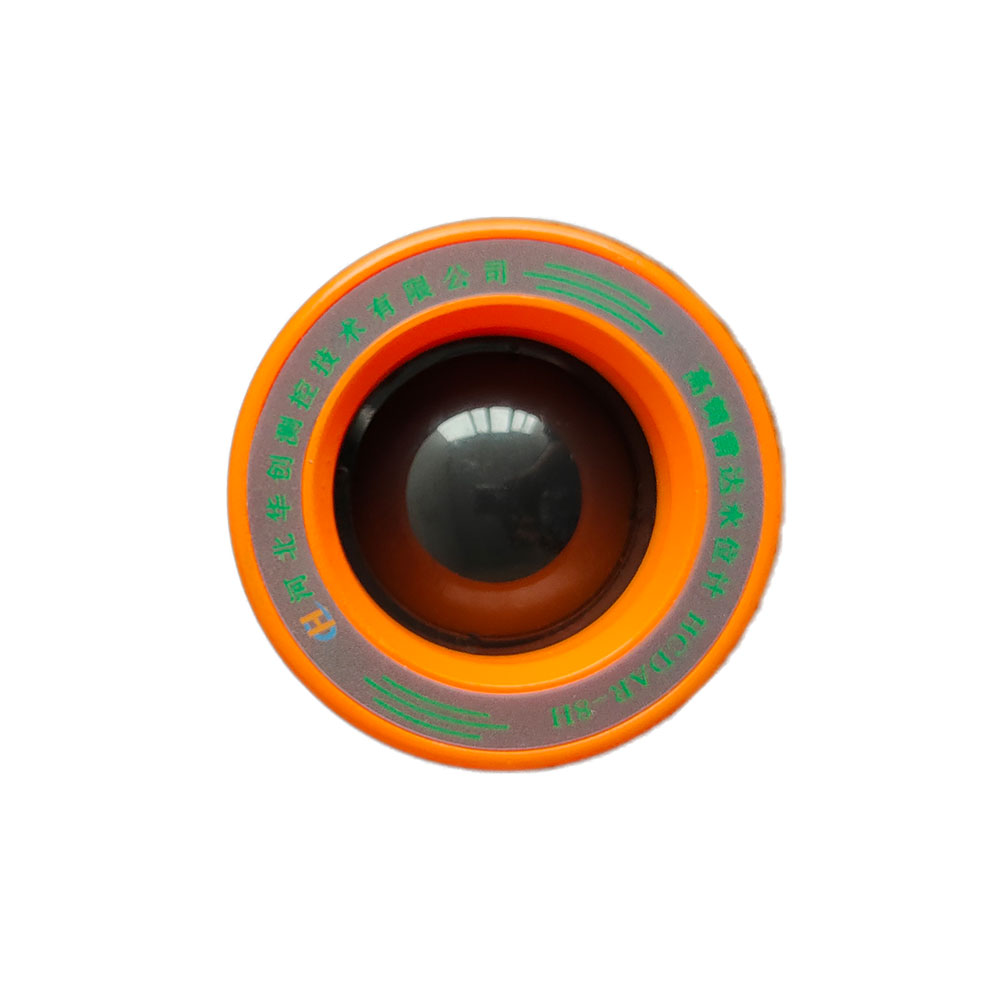

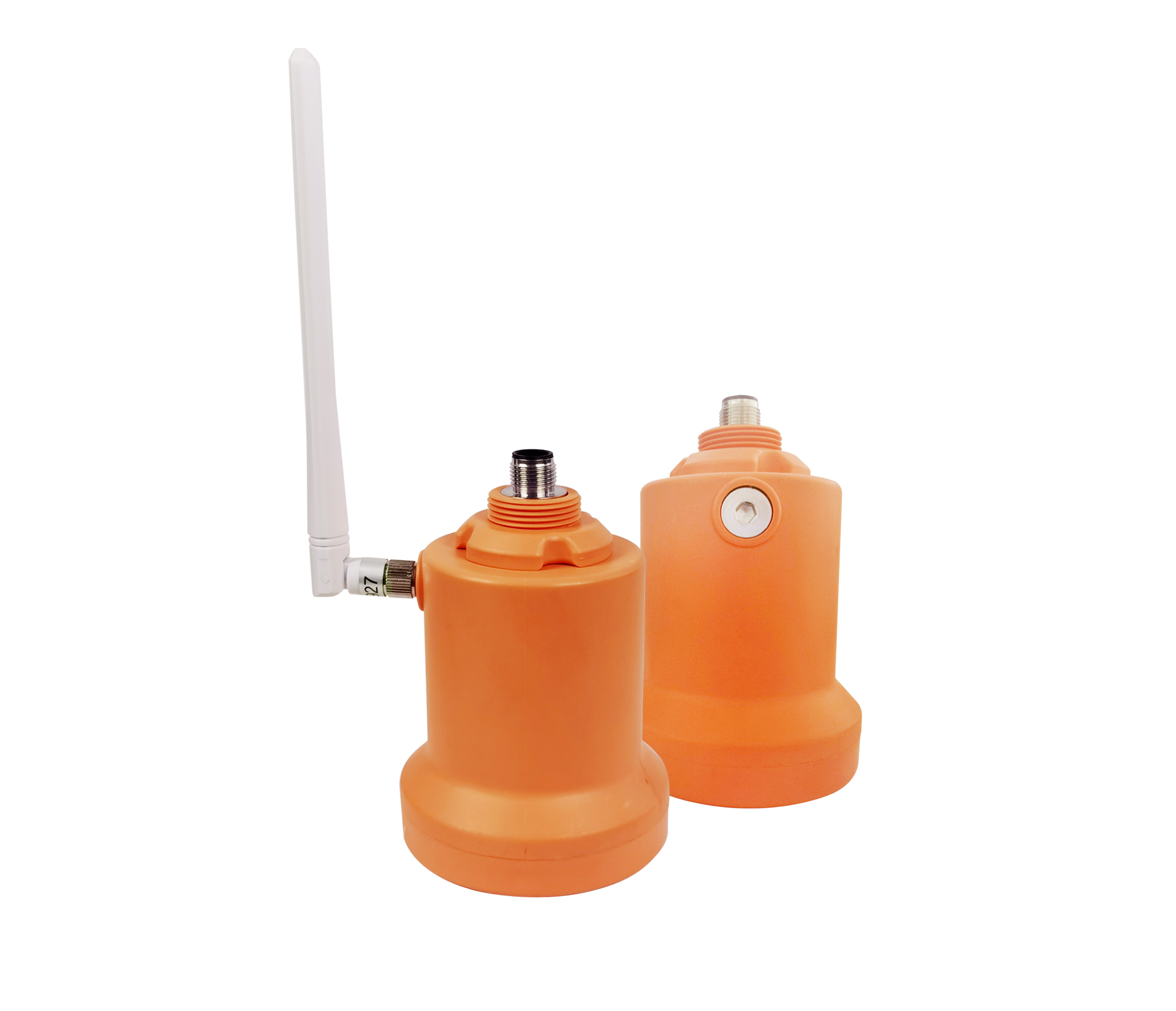

HCDAR-8X series radar level sensor is one kind of level measuring instrument which uses FMCW ( Frequency Modulated Continuous Wave ) special millimeter wave technology , the working frequency is 76-81Ghz. The signal output has options : 2 wires 4-20mA, 4 wires 4-20mA or RS485.  The max range can reach 120m, and the blind zone of 8cm. The antenna beam angle is about 3°,the outstanding performance makes it is workable for the accurate measurement of liquids, solids, and powder materials.

Application case

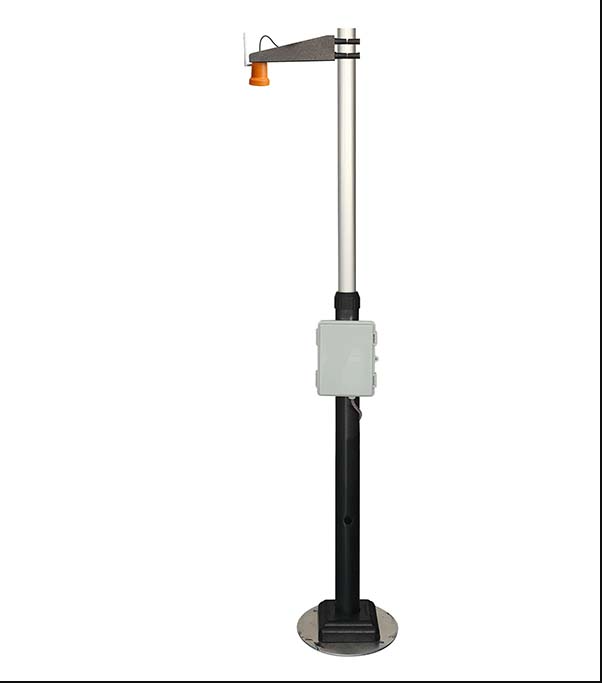

It is suitable for water level measurement of river channels and lakes. The antenna beam angle is small, with small dimension and very light.
